Group Pathfinding With Flow Fields

C#, Unity 3D, Pathfinding, Flow Field, Eikonal Equations, 3D Simulation

Group Pathfinding With Flow Fields is a project I wrote as the final project for my Animation and Planning In Games class. My goal was to implement a Flow Field based pathfinding solution for large numbers of individual agents in the game engine Unity, similar to systems found in RTS games. The Flow Field is built on a grid representation and the integration field is calculated with the Eikonal equation, providing a smoother vector field when compared to methods based on a form of Dijkstra’s algorithm. The result is a relatively efficient pathfinding solution that's computation time scales with the map size not the number of pathing agents.

Project Details

  • Category: Game Development, Game Design, Graphics, 3D Simulation, Unity
  • Date: Fall 2023
  • Technologies: C#, Unity 3D, Pathfinding, 3D Rendering

How to Run

  • 1.) Click on the Download the Project button
  • 2.) Download the latest executable from the Github Releases Page
  • 3.) Click the executable to play the game
  • 4.) Check out the project's source code on Github

Highlighted Features

Many Unit Single Goal Pathfinding

Because the flow field is a map calculated once for each destination, the computation time scales with the size of the map and not with the number of agents requesting a path. This makes the algorithm well suited for many agents pathing from different locations to the same point.

Flowing Movement

Because the Flow Field pathfinding has a unit reference the field and follow the gradient of that field, paths often look more organic and large numbers of agents start to move more akin to fluid around obstacles.

Layers of Maps

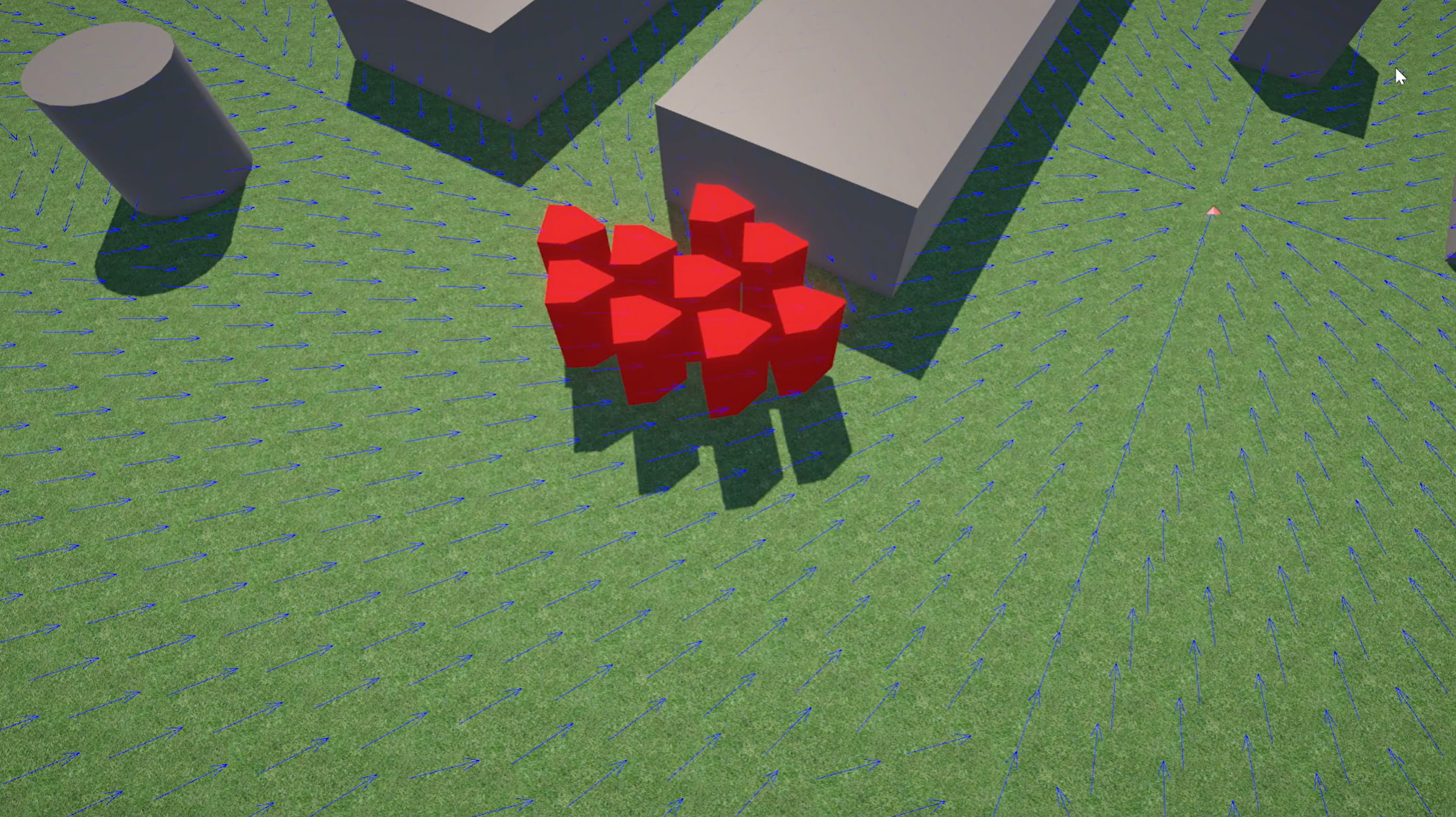

The final vector field that agents reference when they want to move is calculated from a series of fields. We start with an obstruction layer and then create an integration layer by integrating values out from the goal position. Taking the gradient of that integration field at each cell in the grid provides the vector field.

Eikonal vs Dijkstra’s

The integration field can be calculated in many different ways. One of the computationally fastest ways to do this is with a version of Dijkstra’s algorithm to step through each node going out from the goal position. The issue with this method is that it is discrete, causing noticeable square or diamond shape artifacting. This caused agents to take odd paths favoring the cardinal axis. After attempting this method I switched to calculating the integration field using the Eikonal equation, which is a partial differential equation used to model wave propagation amongst other things. While more computationally expensive, the field provided is much smoother and more realistic, similar to if a wave in water originates from the goal position and radiates outwards. There are several ways to perform these calculations, for instance, the Fast Marching Method. For my implementation, I used the Fast Iterative Method.
